Cylindrical roller bearings are a type of rolling-element bearing that uses cylindrical rollers to support radial loads. They are designed to handle high radial loads, especially in situations where heavy loads and high speeds are involved. These bearings are widely used across various industries due to their ability to provide efficient performance, high load capacity, and durability.

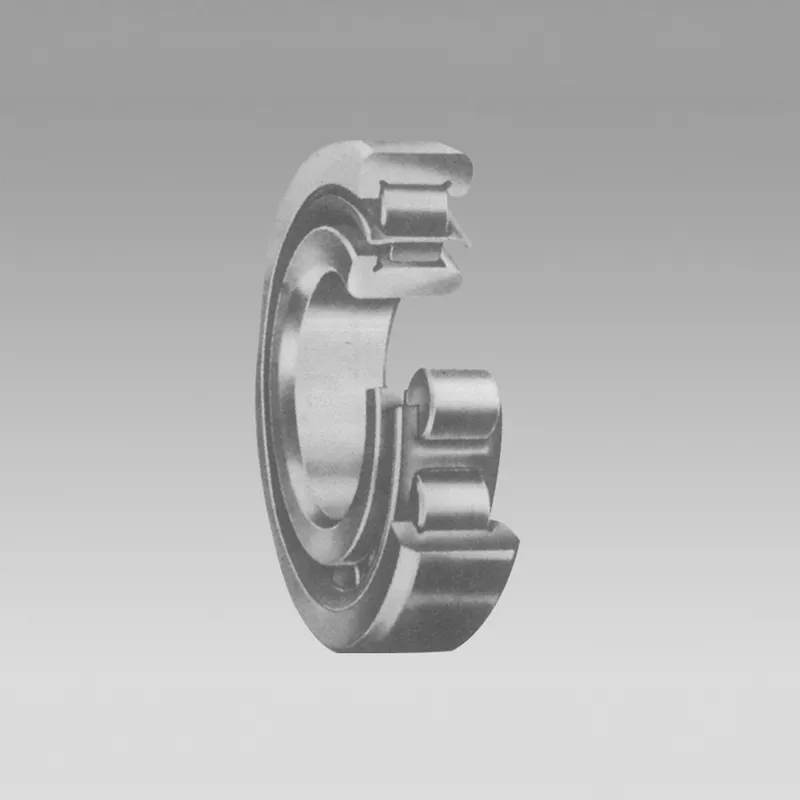

A cylindrical roller bearing is composed of an outer ring, an inner ring, cylindrical rollers, and a cage. The cylindrical rollers make contact with the raceways (the surfaces inside the rings) and are responsible for carrying the load. Unlike ball bearings, cylindrical roller bearings do not have balls, making them capable of handling higher loads and offering greater stability. These bearings also have lower friction compared to other types of roller bearings, making them ideal for high-speed applications.
There are several types of cylindrical roller bearings, each designed for specific applications and load conditions:
1. Single-Row Cylindrical Roller Bearings
These bearings have a single row of rollers and are designed to handle high radial loads. They are commonly used in applications where space is limited, and the load is not subject to heavy axial forces.
2. Double-Row Cylindrical Roller Bearings
Double-row cylindrical roller bearings feature two rows of rollers and can support both high radial loads and moderate axial loads in both directions. These bearings are ideal for applications requiring more load capacity than single-row bearings.
3. Four-Row Cylindrical Roller Bearings
These bearings have four rows of rollers, providing an even higher load-carrying capacity. They are typically used in situations where extremely heavy radial loads are present.
4. Cylindrical Roller Bearings with a Full Complement
These bearings have no cage, which allows for a higher number of rollers, thereby increasing the load capacity. Full complement cylindrical roller bearings are suitable for applications where extremely high load capacity is required.
5. E-type Cylindrical Roller Bearings
E-type cylindrical roller bearings have a reinforced design with increased radial load capacity. They are typically used in applications requiring higher durability and load resistance.
Cylindrical roller bearings are used in a wide range of industries due to their ability to support heavy loads and withstand harsh conditions. Here are some common applications:
1. Automotive Industry
Cylindrical roller bearings are used in various components of vehicles, including transmissions, wheel hubs, and engines. Their ability to handle high radial loads while maintaining smooth operation is crucial for vehicle performance.
2. Industrial Machinery
In industrial settings, cylindrical roller bearings are used in machine tools, conveyors, and gearboxes. Their ability to handle heavy radial loads while minimizing friction makes them ideal for high-speed and heavy-duty applications.
3. Electric Motors
Cylindrical roller bearings are widely used in electric motors due to their high load-carrying capacity and ability to support high speeds. These bearings help reduce vibration and wear, improving the efficiency and lifespan of electric motors.
4. Mining and Construction Equipment
Heavy-duty machinery used in mining and construction requires bearings that can handle extreme radial loads and harsh environments. Cylindrical roller bearings provide the strength and durability needed for these applications.
5. Power Generation
In power generation plants, cylindrical roller bearings are used in turbines and generators. These bearings are designed to handle high-speed operations while supporting heavy loads and ensuring long-term reliability.
6. Agricultural Machinery
Agricultural equipment such as tractors, harvesters, and plows require reliable bearings to operate efficiently under high load conditions. Cylindrical roller bearings help ensure that these machines perform smoothly during demanding tasks.
There are numerous manufacturers worldwide that produce cylindrical roller bearings, catering to various industries and applications. Some well-known manufacturers include:
1. SKF
SKF is one of the leading global manufacturers of bearings, including cylindrical roller bearings. They offer a wide range of products designed for high-load and high-speed applications. SKF is known for its innovative bearing solutions and global reach.
2. NTN Corporation
NTN is a major manufacturer of bearings, including cylindrical roller bearings, with a strong presence in the automotive and industrial machinery sectors. Their bearings are known for their reliability and long service life.
3. FAG (Schaeffler Group)
FAG, a brand of Schaeffler Group, produces a wide range of cylindrical roller bearings used in automotive, aerospace, and industrial applications. They are known for their high-quality standards and extensive product range.
4. Timken
Timken is another well-known bearing manufacturer, offering a variety of cylindrical roller bearings designed for heavy-duty applications. They are recognized for their ability to produce bearings with high durability and precision.
5. NSK
NSK manufactures cylindrical roller bearings with a focus on precision and performance. They serve a variety of industries, including automotive, aerospace, and robotics.
Cylindrical roller bearings are essential components in many industries, providing reliable performance for high-load and high-speed applications. They are widely used in automotive, industrial machinery, power generation, and mining equipment. With various types such as single-row, double-row, and full complement bearings, cylindrical roller bearings offer flexible solutions for different load and space requirements.
Leading manufacturers such as SKF, NTN, FAG, Timken, and NSK produce high-quality cylindrical roller bearings, ensuring their widespread use in industries that require robust and efficient bearing solutions. Choosing the right type of cylindrical roller bearing based on the specific application can improve the performance, longevity, and reliability of machinery and equipment.
